RF & Wireless Systems · Hardware
Wireless Machine Start & Control
Crane-proven remote control, for every machine.
Overview

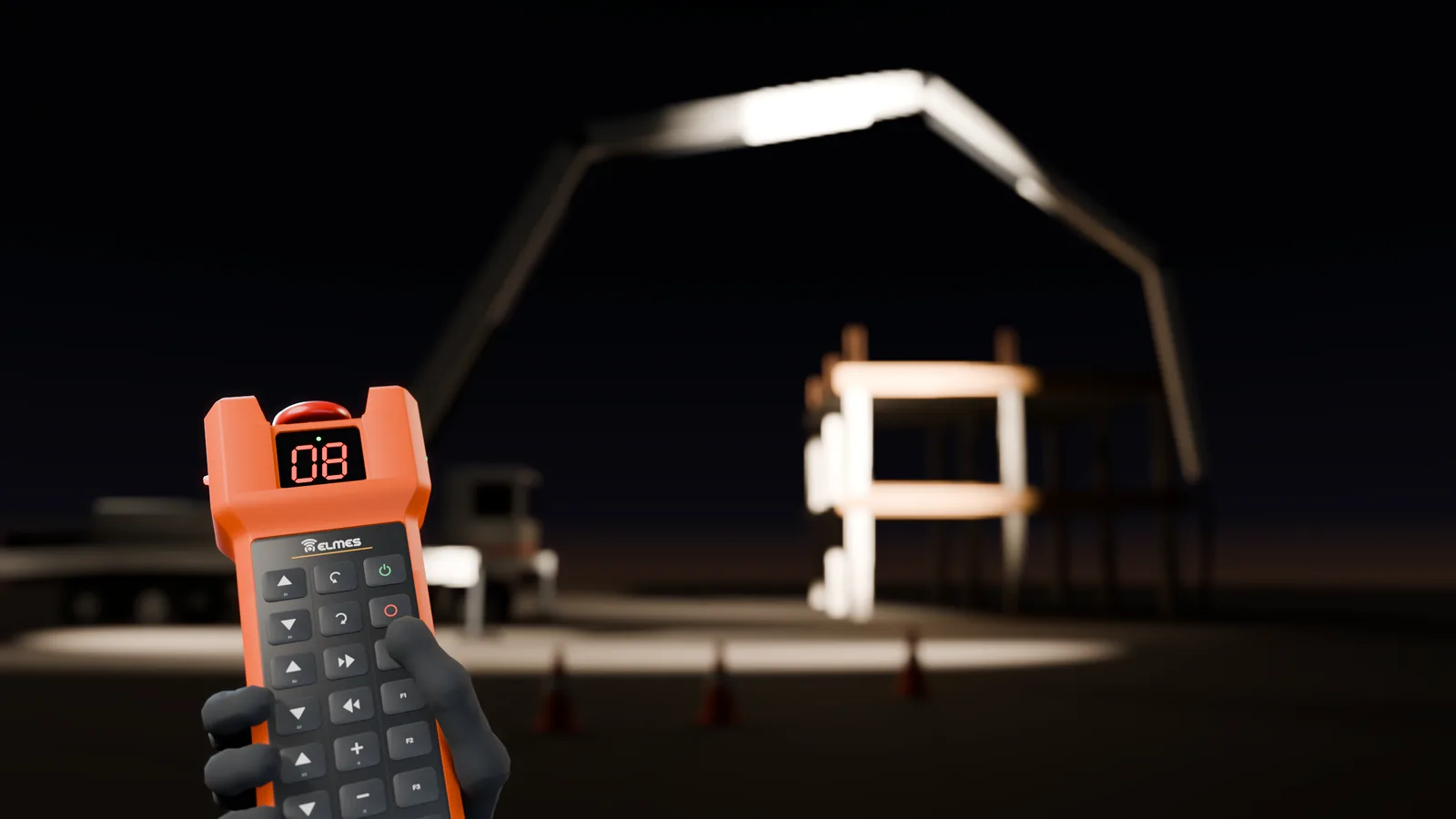

The problem. On machines such as concrete pumps, sandblasting booths, horizontal lifts and mobile pumps, the operator needs to be away from the machine, wherever the work can be seen: at the boom tip, outside the booth, on the platform. Wired controls (coiled cables, pendant stations) break, snag, restrict movement and cause accidents. Off-the-shelf imported industrial remotes are expensive, closed to channel and logic customization, and serviced abroad. Cheap 433 MHz remotes, on the other hand, lack industrial safety features (emergency stop, defined link-loss behavior, interference protection).
The solution. The transmitter (membrane/buttons/joystick) and receiver (relays + analog outputs) hardware of the Wireless Crane Control System platform is configured for each machine: a 24-channel concrete pump remote, an 8-channel + emergency stop general-purpose remote, a single receiver with 10 transmitters, proportional drive with a joystick, single-channel pump start/stop. The receiver relays drive contactors or PLC inputs; if communication is lost, the relays drop out (safe state), and the emergency stop is handled with priority through a separate relay. Multiple machines on the same site are separated by channel and ID.
New series. The roadmap standardizes the receiver on DIN rail with the Elmes Module Series and EC carrier boards (EC-DIO8/16), moves the transmitter to a new platform, and adds encryption and OTA updates.
Features
- Machine-specific control layout: 24-channel concrete pump (boom, flow, emergency stop), 8 channels + emergency stop, proportional joystick control; button labels per customer.
- Emergency stop relay: a separate safety relay; link loss and emergency stop are handled with distinct behaviors.
- Many transmitters → one receiver (10:1): start or call commands from different points.
- Interlocks and two-speed control: forward/reverse and up/down interlocking; stepped speed bits.
- Latching / pulse relay modes: for start/stop type machines.
- Timer and pump modes: single-channel start/stop, timed operation.
- TargetSafety relay module: EN ISO 13849-1 PL level for the emergency stop path with a safety relay module.
- TargetTransmitter logging: the receiver logs which transmitter issued each command.
- TargetEncrypted link and OTA: AES-128 + network ID (NetID), over-the-air firmware updates.
- TargetDIN-rail receiver and Modbus: DIN-rail receiver on EC-DIO8/16 carrier boards, Modbus RTU slave interface.
- TargetOperator feedback and protection: RSSI indicator, stuck-button protection.
- TargetRechargeable transmitter and 868 MHz option: Li-ion rechargeable transmitter; an 868 MHz version as an option.

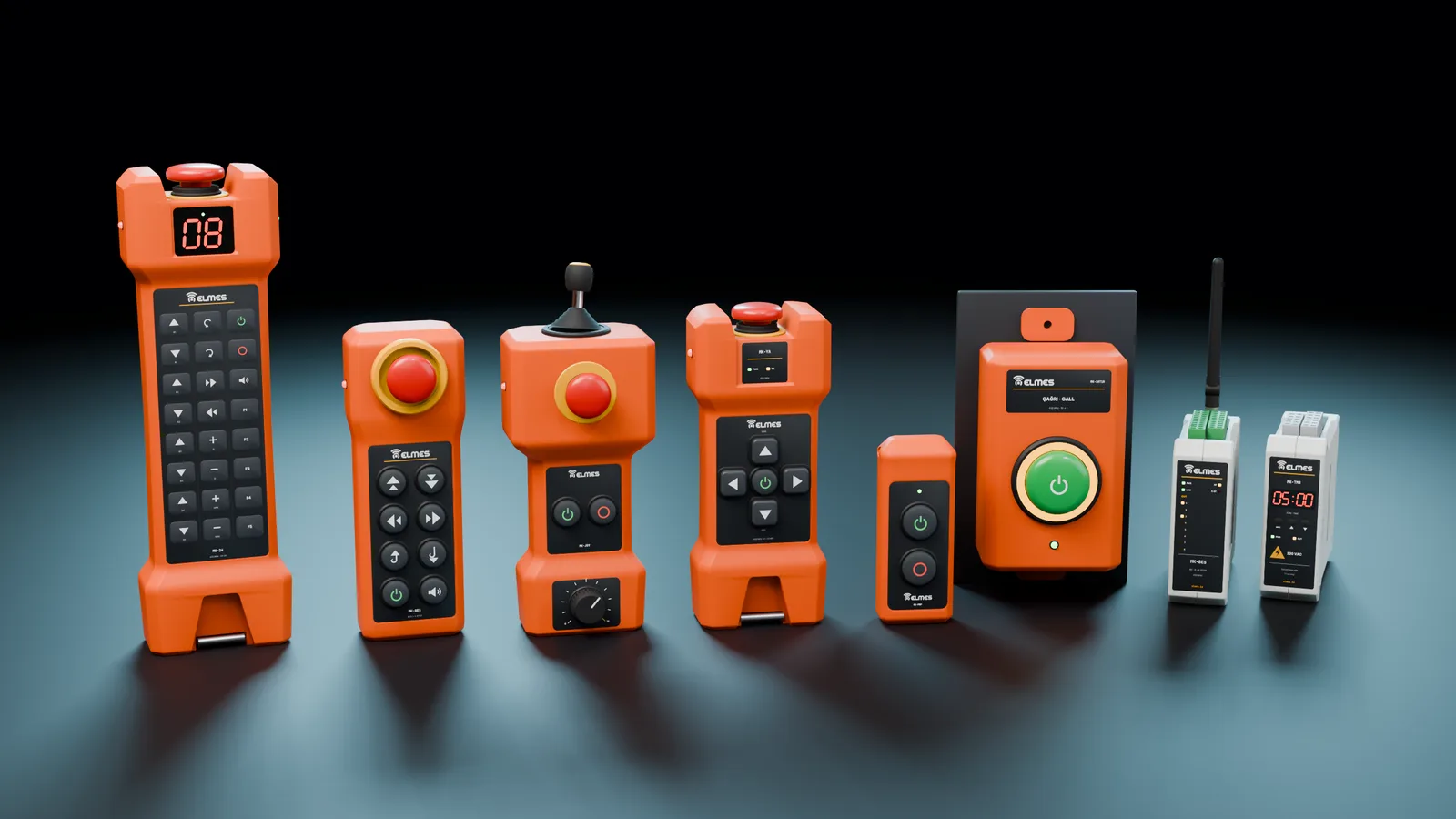

Application variants
| Model code | Transmitter | Receiver | Application | Status | Request a quote |
|---|---|---|---|---|---|

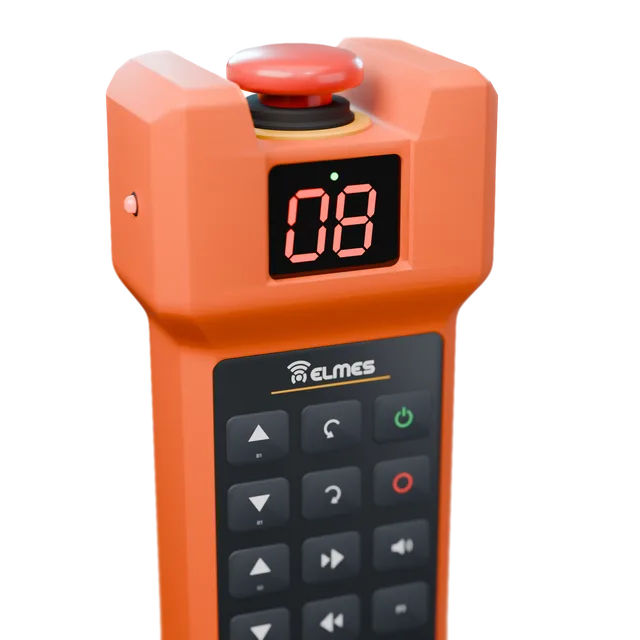

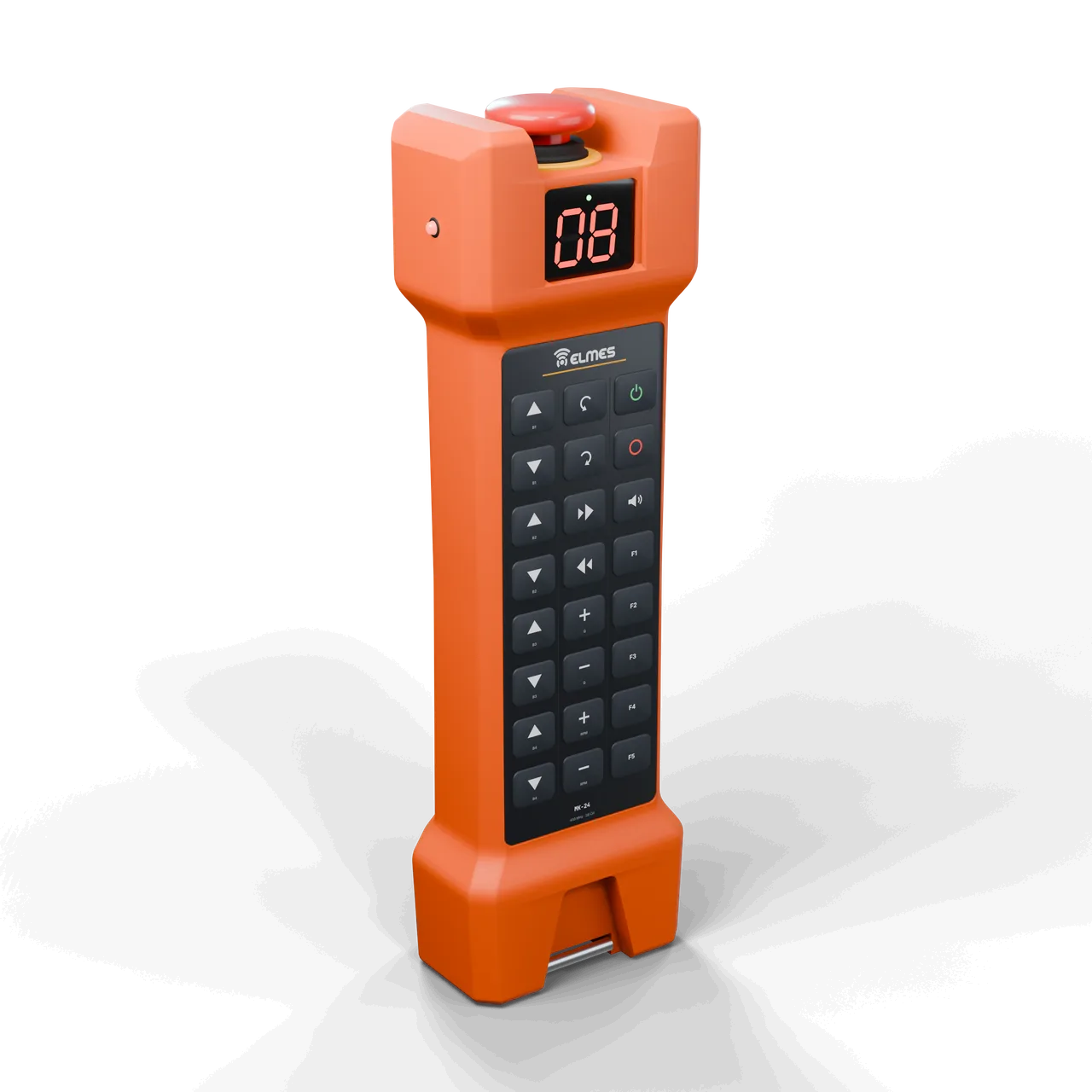

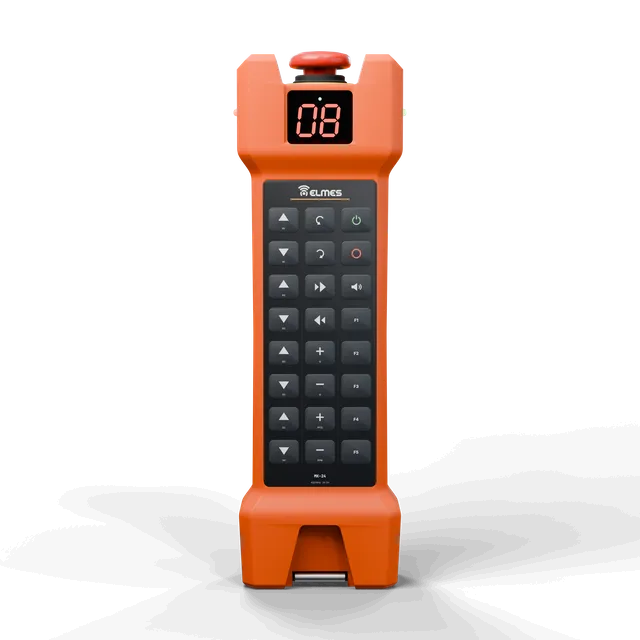

| MK-24 | 24-channel membrane (TXI-VK200 based) | 24 relays (RT207 based) | Concrete pump (boom, speed, emergency stop) | In the field | Request a quote: MK-24 |
| MK-8ES | 8 channels + emergency stop | 8 relays + emergency stop relay | General machinery, sandblasting | In the field | Request a quote: MK-8ES |
| MK-YA | Horizontal lift remote | Relays + limit inputs | Horizontal lift / platform | In the field | Request a quote: MK-YA |
| MK-10T1R | 10 push-button transmitters | 1 receiver | Machine call / start from multiple points | In the field | Request a quote: MK-10T1R |
| MK-JOY | Joystick / potentiometer transmitter | Analog + relay receiver (RT207, 6 analog outputs) | Proportional drive (pump flow, non-crane) | In the field | Request a quote: MK-JOY |
| MK-PMP | 1–2 channel start/stop | 1–2 relays | Pump / compressor / DC motor | In the field | Request a quote: MK-PMP |
| MK-TMR | — | 220 V timer relay | Timed operation | In the field | Request a quote: MK-TMR |
| MK-N3-xxTarget | New-series transmitter (6/8/16/24 channels) | EM-G0L + EC-DIO8/16 | All applications | Planned | Request a quote: MK-N3-xx |
Specifications
Values marked “Target” are design targets, next-generation values or chip-vendor data; they are updated as measurement and certification are completed.
| Frequency | 433 MHz ISM band (433.056 MHz) |
|---|---|
| Modulation | 2-FSK / GFSK |
| Output power | ≤ +10 dBm |
| Receiver sensitivity | ~−104 dBm @ 2.4 kbps (approx.) |
| Antenna | Transmitter: internal / helical; receiver: external SMA |
| Coding | System ID + CRC |
| Pairing | ID written at production (with a programming tool) |
| Watchdog | Microcontroller hardware watchdog (WDT) |
| Frequency band | 433.05–434.79 MHz, 8 channels; 868 MHz as an option onlyTarget |
|---|---|
| RF channels | 8Target |
| Output power | +22 dBmTarget |
| Receiver sensitivity | −129 dBm @ SF11 (chip datasheet)Target |
| Modulation | LoRa SF7–SF9 (low SF for low latency)Target |
| Open field | ≥ 1000 m (SF8)Target |
|---|---|
| Industrial environment | ≥ 200 mTarget |
| Rolling code | Rolling-code packet validationTarget |
|---|---|
| Encryption | AES-128 + counterTarget |
| Addressing | 16-bit ID; network ID (NetID) + 16-bit address in the new seriesTarget |
| Field pairing | With a service toolTarget |
| Systems on the same site | ≥ 8 independent networks (channel × network ID)Target |
| Emergency stop | Separate relay, priority packet; latches and is released by reset |
|---|---|
| Command latency | < 50 ms (SF7, short packet)Target |
| Fail-safe on link loss | 0.5–2 s, adjustableTarget |
| Watchdog (new series) | Independent hardware watchdog (IWDG)Target |
| Receiver supply | 12/24 VDC or 220 VAC (to order); consumption depends on the number of relays, ~70 mA per relay @ 12 V |
|---|---|
| Transmitter power | Battery-powered |
| Transmitter battery (new series) | Rechargeable Li-ion; at least 1 shift of operationTarget |
| Relay outputs | 6–32 channels (24 relays + 3 digital outputs on the RT207 receiver) |
|---|---|
| Relay outputs (new series) | EC-DIO8 (8 relays) / EC-DIO16; 24+ channels with multiple boards; 5 A / 250 VACTarget |
| Analog outputs | 6 analog outputs on the RT207 receiver (joystick / potentiometer) |
| Analog outputs (new series) | EC-AIO: 2 × 4–20 mA / 0–10 VTarget |
| Receiver digital inputs | Limit and feedback inputs (horizontal lift) |
| Digital inputs (new series) | EC-DIO8: 8 digital inputsTarget |
| Communication | RS485 / Modbus RTU slaveTarget |
| Transmitter housing | Handheld membrane remote |
|---|---|
| Transmitter ingress protection | IP65Target |
| Receiver enclosure | Metal or plastic box (RT207) |
| Receiver enclosure (new series) | DIN-rail housingTarget |
| Operating / storage temperature | −20…+60 °C / −30…+70 °CTarget |
| Warranty | 2 years; service in Ankara |
|---|---|
| Spare-parts support | 5 yearsTarget |
Applications
- Concrete pumps and construction machinery
- Horizontal lifts and transport platforms
- Sandblasting and paint booths
- Pump and compressor stations
- Conveyor and hatch control
- Foundry, steel and glass plants
- OEM machine builders
The receiver's relay contacts connect to contactor coils or PLC inputs; the system can run in parallel with an existing wired control (a selector switch is recommended). For crane applications, see the Wireless Crane Control System page.
Machine builders can offer the remote as a standard option together with the Elmes OEM Device Control Platform. Where only a few dry contacts (start/stop, fault, ready) need to be carried, the Wireless Digital I/O Link is a simpler solution.
Compliance & documentation
Machine control applications rely on the user manuals and wiring diagrams shared with the crane control system. Application-specific datasheets and manuals, as well as product-level conformity documents, are being prepared according to the plan below; the product is not presented as certified until these documents are in place.
- TargetCE – RED 2014/53/EU (EN 300 220-2, EN 301 489-1/-3)Together with the crane control system, starting at module level
- TargetEMC — EN 61000-6-2 / EN 61000-6-4
- TargetLVD — Low Voltage Directive
- TargetEN ISO 13849-1 PL — emergency stop pathLevel to be set together with the new crane control series
- TargetEN 60204-32 / EN 60204-1 — electrical equipment of machines
- TargetRoHS declaration
- TargetRisk assessment (machine safety)
- TargetCE declaration of conformity, application-specific datasheets and user manual
References
Some of the organizations using this product family.
- Opal
- BM İnşaat
- ARTEK
- ENV-EX
- Treysan
- Hidropol
- Ademsan
- Tok Grup Mühendislik
Frequently asked questions
How is it different from the crane remote?
The hardware is the same as the Wireless Crane Control System; channel layout, relay logic (latching/pulse, interlocks) and housing labels are adapted to the machine. This page covers non-crane machine applications.
What happens if the transmitter is dropped or the battery runs out?
The packets stop; the receiver times out and drops all relays (safe state). The emergency stop latches through a separate relay.
How many machines can run on the same site without interfering?
Each machine runs on its own channel and ID. The new series targets at least 8 independent networks through channel × network-ID combinations.
How does it connect to an existing control panel?
The relay contacts connect to contactor coils or PLC inputs; the system can run in parallel with the existing wired control (a selector switch is recommended).
Is proportional (joystick) control available?
Yes: a joystick/potentiometer transmitter is paired with a receiver that has analog outputs (6 analog outputs on the RT207 receiver). In the new series, analog outputs come from the EC-AIO board in the EC carrier board range.
How can the range be extended?
Move the receiver antenna outside the panel and up high (Industrial RF Antenna Series) and keep the transmitter away from metal bodies. The new series targets longer range with LoRa.
Can there be several operators or transmitters?
Yes: 10 transmitters → 1 receiver (call/start) or a spare transmitter. Where simultaneous control is needed, priority and lock logic are adapted to the application.
Is there a safety certification (PL/SIL)?
Not yet; the target level will be set together with the new crane control series. Emergency stop and link-loss behavior are part of the current design.
What about warranty and service?
2-year warranty; service in Ankara.
